ESP-IDF Telemetry UI: Generating and Applying Custom Fonts
Overview

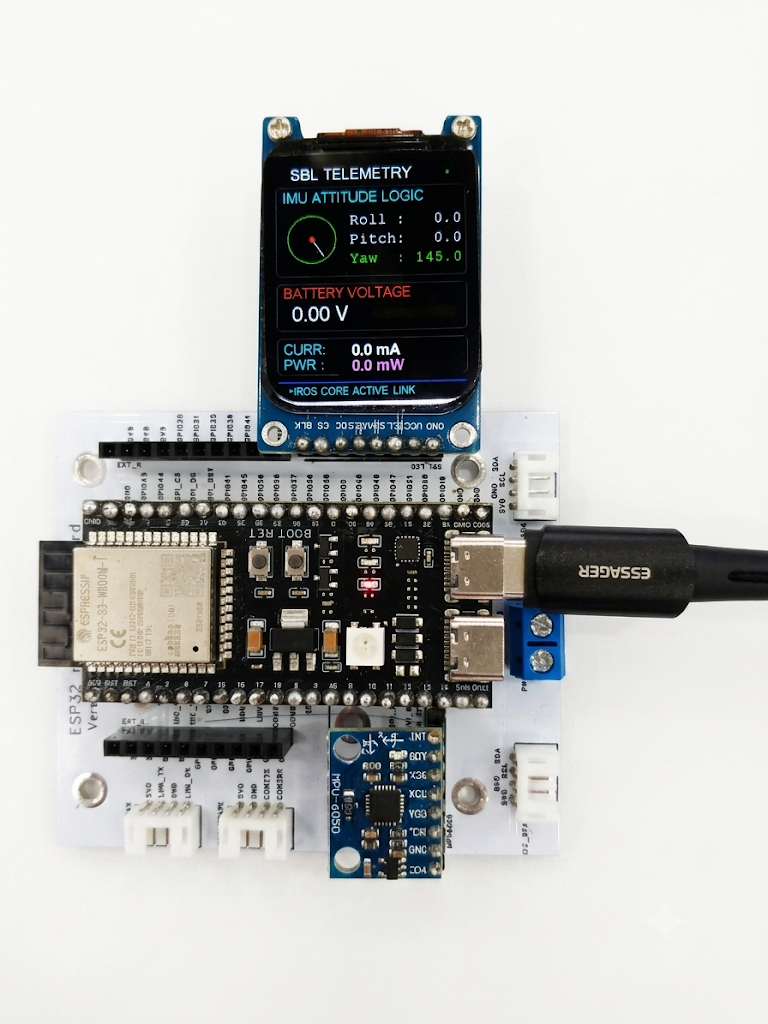

I used a 1.69-inch IPS Display (ST7789) as a telemetry UI. On Raspberry Pi, font and text size were not a major issue. However, when using it in the ESP-IDF environment with the Adafruit-GFX-Library, the default fonts and sizes became problematic.
Generating Fonts with Adafruit-GFX-Library
Looking into the Adafruit-GFX-Library directory, you’ll find the following structure. The folder of interest here is fontconvert.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
go@ubuntu2404:~/esp/projects/atlas_new_esp/components/Adafruit-GFX-Library$ tree -L 2
.
├── Adafruit_GFX.cpp
├── Adafruit_GFX.h
├── Adafruit_GrayOLED.cpp
├── Adafruit_GrayOLED.h
├── Adafruit_SPITFT.cpp
├── Adafruit_SPITFT.h
├── Adafruit_SPITFT_Macros.h
├── CMakeLists.txt
├── component.mk
├── examples
│ ├── GFXcanvas
│ └── mock_ili9341
├── fontconvert
│ ├── bdf2adafruit.py
│ ├── DejaVuSans6pt7b.h
│ ├── DejaVuSans8pt7b.h
│ ├── fontconvert
│ ├── fontconvert.c
│ ├── fontconvert_win.md
│ ├── Makefile
│ └── makefonts.sh
├── Fonts
│ ├── DejaVuSans6pt7b.h
│ ├── DejaVuSans8pt7b.h
│ ├── FreeMono12pt7b.h
│ ├── FreeMono18pt7b.h
│ ├── FreeMono24pt7b.h
...<omission>...
Build (fontconvert)
By running the following command, the fontconvert executable is generated:
1
2
go@ubuntu2404:~/esp/projects/atlas_new_esp/components/Adafruit-GFX-Library/fontconvert$
make
Using fontconvert
On Ubuntu 24.04 LTS
Since the ESP-IDF environment was set up on Ubuntu 24.04 LTS, we can use system fonts to generate new ones. As an example, I used the commonly available DejaVuSans.ttf to create a 6pt font.
1
2
go@ubuntu2404:~/esp/projects/atlas_new_esp/components/Adafruit-GFX-Library/fontconvert$
./fontconvert /usr/share/fonts/truetype/dejavu/DejaVuSans.ttf 6 > ../Fonts/DejaVuSans6pt7b.h
Practical Usage
After declaring the font, simply load it with tft.setFont(..). It’s straightforward:
1
2
3
4
5
6
7
8
9
10
11
12
#include <Fonts/DejaVuSans8pt7b.h>
#include <Fonts/DejaVuSans6pt7b.h>
..
void display()
{
...<omission>...
tft.setFont(&DejaVuSans6pt7b);
tft.setTextSize(1);
...<omission>...
}
Conclusion
The default fonts max out at 9pt, which is not suitable for a 1.69-inch (280x240) display. Additionally, the default font style was not visually appealing. Therefore, generating custom fonts is an important consideration when working with this setup.
